BJE-GRP

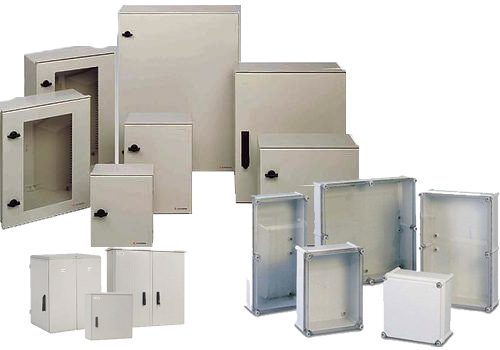

Glass-fibre Reinforced Polyester enclosures and accessories

Glass-fibre Reinforced Polyester or GRP enclosures are light weight and robust. Their main characteristics are that they are UV resistant and extremely strong with an impact strangth similar to that of metal enclosures. As well as this they are non-corrosive which makes them ideal for installation outdoors or in harsh environments.

Units can be machined and customised to your required specification

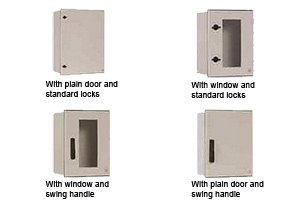

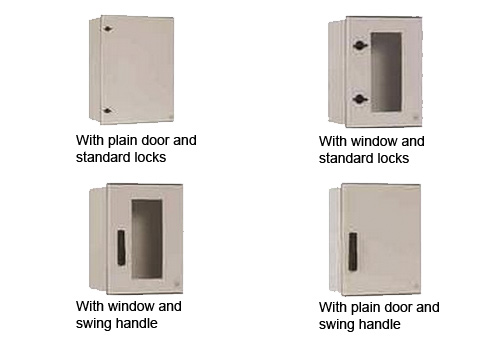

BJE-GRP Minipol

BJE-GRP Minipol Enclosure from The Enclosure Company

Glass-fibre Reinforced Polyester range of monoblock enclosures with hinged door.

Suitable of all kinds of applications in harsh environments thanks to the non-corrosive, UV resistant and extremely robust material.

They are lighter than the equivalent sized metal enclosure but also suitable for the installation of heavy equipment.

  • IP-66 according to EN60529
  • IP-10 according to EN50102
  • Self-extinguishing according to EN60695-2-1/10
  • Thermal Class E150°C according to EN-HD566S1 and 60085

Accessories include:

  • Door with window
  • Inner door
  • 3 point locking and swing handles
  • Metal mounting plates
  • GRP mounting plates
  • Drain valves
  • Ventilation devices

Order Symbol Code Dimensions
(length x width x depth)
Description
MIP 325 300x250x140 Available with plain door, window door and either standard locks or swing handle.
MIP 43 400x300x200 Available with plain door, window door and either standard locks or swing handle.
MIP 44 400x400x200 Available with plain door, window door and either standard locks or swing handle.
MIP 54 500x400x200 Available with plain door, window door and either standard locks or swing handle.
MIP 64 600x400x230 Available with plain door, window door and either standard locks or swing handle.
MIP 65 600x500x230 Available with plain door, window door and either standard locks or swing handle.
MIP 86 800x600x300 Available with plain door, window door and either standard locks or swing handle.

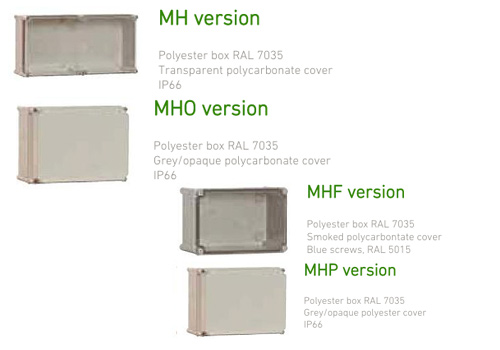

BJE-GRP Combiester

BJE-GRP Combiester Enclosure from The Enclosure Company

Glass-fibre Reinforced Polyester range of boxes with transparent or opaque cover.

The transparent cover is also available in polycarbonate.

Back plates and wall mounting accessories available.

  • IP66 in individual boxes and IP55 in cabinets according to IEC 60529
  • IP09 according to IEC 62262

Accessories include:

  • Flanges to increase the depth of the boxes.
  • Self-extinguishable polyester mounting plate.
  • Metal mounting plate
  • Self-extinguishable bakelite mounting plate.
  • Fuseboard frame.
  • No. of din rails
  • No. of modules

Order Symbol Code Dimensions
(length x width x depth)
Description
MH 15 E234015 135x135x129 Polyester box RAL-7035 with transparent polycarbonate cover
MH 21 E234021 180x135x129 Polyester box RAL-7035 with transparent polycarbonate cover
MH 22 E234022 180x180x129 Polyester box RAL-7035 with transparent polycarbonate cover
MH 31 E234031 270x135x129 Polyester box RAL-7035 with transparent polycarbonate cover
MH 32 E234032 270x180x171 Polyester box RAL-7035 with transparent polycarbonate cover
MH 32B E234032-B 270x180x141 Polyester box RAL-7035 with transparent polycarbonate cover
MH 33 E234033 270x270x171 Polyester box RAL-7035 with transparent polycarbonate cover
MH 34 E234034 270x360x171 Polyester box RAL-7035 with transparent polycarbonate cover
MH 34A E234034-A 270x360x201 Polyester box RAL-7035 with transparent polycarbonate cover
MHO 15 E234115 135x135x129 Polyester box RAL-7035 with grey / opaque polycarbonate cover
MHO 21 E234121 180x135x129 Polyester box RAL-7035 with grey / opaque polycarbonate cover
MHO 22 E234122 180x180x129 Polyester box RAL-7035 with grey / opaque polycarbonate cover
MHO 31 E234131 270x135x129 Polyester box RAL-7035 with grey / opaque polycarbonate cover
MHO 32B E234132-B 270x180x141 Polyester box RAL-7035 with grey / opaque polycarbonate cover
MHO 32 E234132 270x180x171 Polyester box RAL-7035 with grey / opaque polycarbonate cover
MHO 33 E234133 270x270x171 Polyester box RAL-7035 with grey / opaque polycarbonate cover
MHO 34 E234134 270x360x171 Polyester box RAL-7035 with grey / opaque polycarbonate cover
MHO 34A E234134-A 270x360x201 Polyester box RAL-7035 with grey / opaque polycarbonate cover
MHF 15 E237015 135x135x129 Polyester box RAL-7035 with smoked polycarbonate cover, blue screws, RAL-5015
MHF 21 E237021 180x135x129 Polyester box RAL-7035 with smoked polycarbonate cover, blue screws, RAL-5015
MHF 22 E237022 180x180x129 Polyester box RAL-7035 with smoked polycarbonate cover, blue screws, RAL-5015
MHF 31 E237031 270x135x129 Polyester box RAL-7035 with smoked polycarbonate cover, blue screws, RAL-5015
MHF 32 B E237132-B 270x180x141 Polyester box RAL-7035 with smoked polycarbonate cover, blue screws, RAL-5015
MHF 32 E237032 270x180x171 Polyester box RAL-7035 with smoked polycarbonate cover, blue screws, RAL-5015
MHF 33 E237033 270x270x171 Polyester box RAL-7035 with smoked polycarbonate cover, blue screws, RAL-5015
MHF 34 E237034 270x360x171 Polyester box RAL-7035 with smoked polycarbonate cover, blue screws, RAL-5015
MHF 34A E237034-A 270x360x201 Polyester box RAL-7035 with smoked polycarbonate cover, blue screws, RAL-5015
MHP 32 E234732 270x180x171 Polyester box RAL-7035. Grey, opaque polyester cover
MHP 33 E234733 270x270x171 Polyester box RAL-7035. Grey, opaque polyester cover
MHP 34 E234734 270x360x171 Polyester box RAL-7035. Grey, opaque polyester cover
MH 42 E234042 360x180x171 Polyester box RAL-7035 with transparent polycarbonate cover
MH 44 E234044 360x360x171 Polyester box RAL-7035 with transparent polycarbonate cover
MH 44A E234044-A 360x360x201 Polyester box RAL-7035 with transparent polycarbonate cover
MH 63 E234063 540x270x171 Polyester box RAL-7035 with transparent polycarbonate cover
MH 63A E234063-A 540x270x201 Polyester box RAL-7035 with transparent polycarbonate cover
MH 64 E234064 540x360x171 Polyester box RAL-7035 with transparent polycarbonate cover
MH 64A E234064-A 540x360x201 Polyester box RAL-7035 with transparent polycarbonate cover
MH 66 E234066 540x540x171 Polyester box RAL-7035 with transparent polycarbonate cover
MH 66A E234066-A 540x540x201 Polyester box RAL-7035 with transparent polycarbonate cover
MH 84A E234084-A 720x360x201 Polyester box RAL-7035 with transparent polycarbonate cover
MH 86A E234086-A 720x540x201 Polyester box RAL-7035 with transparent polycarbonate cover
MHO 42 E234142 360x180x171 Polyester box RAL-7035 with grey / opaque polycarbonate cover
MHO 44 E234044 360x360x171 Polyester box RAL-7035 with grey / opaque polycarbonate cover
MHO 44A E234044-A 360x360x201 Polyester box RAL-7035 with grey / opaque polycarbonate cover
MHO 63 E234063 540x270x171 Polyester box RAL-7035 with grey / opaque polycarbonate cover
MHO 63A E234063-A 540x270x201 Polyester box RAL-7035 with grey / opaque polycarbonate cover
MHO 64A E234064-A 540x360x201 Polyester box RAL-7035 with grey / opaque polycarbonate cover
MHO 64 E234064 540x360x171 Polyester box RAL-7035 with grey / opaque polycarbonate cover
MHO 66 E234166 540x540x171 Polyester box RAL-7035 with grey / opaque polycarbonate cover
MHO 66A E234166-A 540x540x201 Polyester box RAL-7035 with grey / opaque polycarbonate cover
MHO 84A E234084-A 720x360x201 Polyester box RAL-7035 with grey / opaque polycarbonate cover
MHO 86A E234086-A 720x540x201 Polyester box RAL-7035 with grey / opaque polycarbonate cover
MHF 42 E237042 360x180x171 Polyester box RAL-7035 with smoked polycarbonate cover, blue screws, RAL-5015
MHF 44 E237044 360x360x171 Polyester box RAL-7035 with smoked polycarbonate cover, blue screws, RAL-5015
MHF 44A E237044-A 360x360x201 Polyester box RAL-7035 with smoked polycarbonate cover, blue screws, RAL-5015
MHF 63 E237063 540x270x171 Polyester box RAL-7035 with smoked polycarbonate cover, blue screws, RAL-5015
MHF 63A E237063-A 540x270x201 Polyester box RAL-7035 with smoked polycarbonate cover, blue screws, RAL-5015
MHF 64 E237064 540x360x171 Polyester box RAL-7035 with smoked polycarbonate cover, blue screws, RAL-5015
MHF 64A E237064-A 540x360x201 Polyester box RAL-7035 with smoked polycarbonate cover, blue screws, RAL-5015
MHF 66 E237066 540x540x171 Polyester box RAL-7035 with smoked polycarbonate cover, blue screws, RAL-5015
MHF 66A E237066-A 540x540x201 Polyester box RAL-7035 with smoked polycarbonate cover, blue screws, RAL-5015
MHF 84A E237084-A 720x360x201 Polyester box RAL-7035 with smoked polycarbonate cover, blue screws, RAL-5015
MHF 86A E237086-A 720x540x201 Polyester box RAL-7035 with smoked polycarbonate cover, blue screws, RAL-5015
MHP 63 E234763 540x270x171 Polyester box RAL-7035. Grey, opaque polyester cover
MHP 64 E234764 540x360x171 Polyester box RAL-7035. Grey, opaque polyester cover
